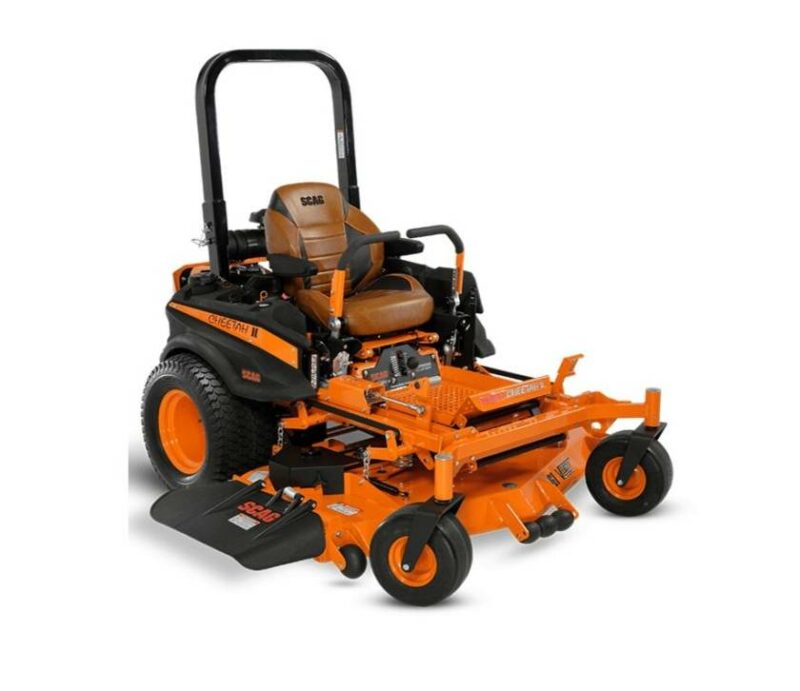

Scag Cheetah II Zero Turn Mower 72″ 999cc Kawasaki Engine

Scag Cheetah II zero turn mower with 72″ Cutting Deck 31hp Kawasaki Engine
Turfmaster Part Number:
SCA-ZER-38/72
The Scag Cheetah II™ mower devours more work faster – all while providing an unmatched quality-of-cut and incredible operator comfort. In your world, where it takes a killer instinct to stay on top, “job” is just another word for “prey.” Swift, nimble, powerful and precise.
Trying to find a zero turn lawn mower that offers top end speed with the consistency and quality of cut you’d expect from high-caliber mower used to be a bit of a challenge – until the Cheetah lineup from SCAG came along, anyway.
Capable of speeds that can top out at up to 25 km/h (combined with a coil over shock suspension system that keeps you nice and comfortable – not to mention safe – at these high-end speeds), the Velocity Plus mowing deck operates in perfect sync to guarantee you get the efficient, clean cuts you’ve always gotten from SCAG zero turn mowers in the past.
Two different speed settings (low range and high range, offering up to 19 km/h and up to 25 km/h respectively) allow you to decide whether or not you want to zoom through larger lawns or take your time and get a little bit better fuel efficiency along the way. You’re always in complete control when it comes to the SCAG Cheetah mower ‘s.
A 61 inch mower deck is going to make quick work of lawns no matter how fast you’re going, and you’ll still get the kind of zero turn capabilities you’d expect from this company. Agile, relatively compact, and easy to maneuver with oversized steering and speed control arms the Cheetah II is a dream to use.
Specifications:
General
Total Fuel Capacity:
13 gallons
Drive Tires:
24″ x 12″-12″
Caster Tires:
13″ x 6.5″-6″
Seat:
4-point iso-mounted mid-back mounted on operator-suspension platform
Drive System
Drive System Type:
Hydro-Gear ZT5400 Transaxle. Two-Speed
Pumps:
Internal Pump: 16cc
Motors:
Internal Motor: 21cc
Forward Ground Speed:
25.6 km/h 16 mph (high-speed) / 19.2 k/h 12 mph (low-speed)
Reverse Ground Speed:
12.8 km/h 8 mph (high-speed) / 8 km/h 5 mph (low-speed)
Parking:
Brake Foot-operated pedal
Deck
Cutting Widths:
72″
Type:
Velocity Plus™
Cutting Height:
1.25″ to 5″ in .25″ increments
Deck:
Lift Adjustable foot-operated pedal
Construction:
Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel.
Reinforcement plates at cutter deck spindles.
Spindles:
Cast-iron housing with tapered roller bearings.
Blade Engagement:
Ogura GT5 (350 ft lb)
Adjustable air-gap for extended life.
Product Dimensions:
Length:
91″
Width (chute down):
83″
Width (chute in transport position):
73″
Height (ROPS folded):
49.5″
Height (ROPS up):
67″
Weight:
1,399-1,427 lb
Features:
Velocity Plus Cutter Decks:
Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Velocity Plus™ cutter deck is an outstanding performer and delivers beautiful results.
The Velocity Plus™ Cutter Deck provides the unmatched power, precision and performance professionals demand. This revolutionary deck design delivers high-velocity discharge plus a beautiful manicured cut, even at faster ground speeds. A redesigned cutting chamber and massive discharge opening provide even greater cutting performance with maximum clipping dispersal in any conditions.
Flexibility — The Velocity Plus cuts everything from fine grasses to tough weeds. The Custom-Cut™ Front Baffle System allows you to customize the deck to your individual conditions for even more productivity and higher performance.
Adjustable Custom-Cut Baffle:
Custom-Cut Baffle System allows you to customize the cutter deck baffling to your specific conditions.
Cast-Iron Spindles:
The industry’s best spindle, period. Includes tapered roller bearings, a 1 1/8″ hardened shaft and so much more.
Tri-Plate Deck Tops:
Super-rigid Tri-Plate deck construction results in a nearly 1/2″ thick (0.485″) steel cutter deck top (most zero-turn rider models).
Front Baffle Chamber:
Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.
Wear Pad:
Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.
Anti-Scalp Rollers:
Up to nine (9) anti-scalp rollers in seven (7) different, strategic locations around the cutter deck provide maximum turf protection.
Split Steel Pulleys:
Split-steel pulleys are stronger than cast or stamped pulleys. They are lighter weight than cast pulleys and are balanced for reduced deck-drive-system wear and vibration. No plastic pulleys here. Some [other brands] actually use plastic pulleys on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is for toys.
Warranty:
We are so confident in the strength of this cutter deck, we stand behind it with a 3-year, “no crack” warranty. Some models feature an additional steel reinforcement welded to the inside-front edge of the cutter deck. This helps prevent damage from impacts, etc.
Discharge Clippings far and wide:
The green arrows display the unrestricted, straight discharge path the Velocity Plus deck delivers. This allows the grass clippings to be discharged farther away from the deck and in a wider pattern. The blue arrows show how the Turbo Baffle and discharge blade fan the grass outward for a more even dispersal pattern.
Velocity Plus:
Turbo-Baffle increases discharge velocity and prevents cut grass from reentering the deck cutting cycle. (Not included on all models; optional on walk-behind mowers.)
Front deck chamber allows grass to stand up before coming in contact with the cutter blade. This minimizes uncut grass and provides a beautiful cut in even the toughest grass.
Patented adjustable front Custom-Cut Baffle allows the user to customize their deck to optimize performance in virtually any cutting conditions, whether side discharging or bagging.
Tough Scag spindles are made with cast-iron housings and tapered roller bearings for long life and dependable service.
Cutter blades are extra-strong to keep a sharp edge longer, yet lightweight to absorb as little engine horsepower as possible, retaining ultra-high blade tip speeds.
The leading edge of the cutter deck is reinforced internally to increase strength while not adding deck length or reducing trimming ability
H Up to 9 anti-scalp wheels in 7 different locations provide the ultimate in turf protection.
One or two (depending on model), 12″ long, rear-mounted anti-scalp rollers protect the rear edge of the deck from damage when going over curbs and when trailering. Rear rollers also provide excellent rear-side turf protection from scalping.
Trim-side wear pad protects the cutter deck and landscaping from scraping and impact damage. Pad can easily be replaced with no welding or cutting involved.
The corners of the Velocity Plus cutter deck are reinforced internally for added strength and to eliminate exterior plates that can reduce trimming ability and potentially damage the landscape.
Tri-Plate cutter deck utilizes three layers of steel for unmatched strength around the spindle mounting area of the deck. Top plate ties all spindles together while the bottom plate is integral to the cutter deck baffling for even more structural integrity.
Reinforcement prevents damage to rear baffle.
Front scalp rollers are height adjustable and the rollers are captured on both sides for increased resistance to bending on impact.
Flexible discharge chute is easy on landscape and will not dent like steel.
Deep and wide idler pulleys keep belt stress to a minimum for increased life. Super thick, laser-cut idler arms provide maximum strength and reliability. No punched out, light-duty, thin metal/plastic stuff here….this is a SCAG.
Deck leveling adjustment bracket makes fine tuning the deck level quick and easy.
Spring-loaded belt systems require no adjustment or maintenance, while keeping perfect tension on the belts for long life.
Idler pulley features a debris cover for the bearings which helps keep moisture and foreign material away from the bearing to increase life.
Deck support bracket runs all the way to the front edge of the deck for increased rigidity.
Deck is pre-drilled at the factory for Hurricane Mulch Systems, as well as the mulch plate, for convenience.
Grease fittings for spindles are top-mounted for easy access.
Easy wing-nut retaining system for belt covers makes removal simple and tool-free.
Idler arm pivots utilize sealed bearings for smooth operation and long life.
Cutter blade retaining bolt travels through the center of the spindle shaft. The through-bolt design also allows you to change blades without altering the proper preload (150 ft lb) on the tapered roller bearings.
