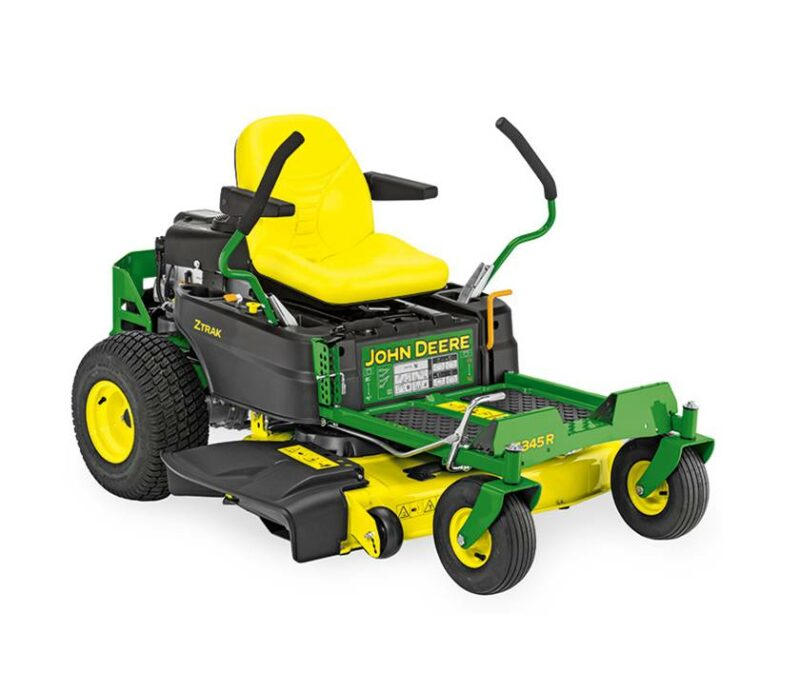

John Deere Z345R Ztrak Zero Turn Mower 42″ 724cc Engine

John Deere Z345R
ZTrak™ Mower with 42-in. Deck.
Turfmaster p/n:
JD-Z345R
Description:
Zero Turn Mower
Please take note: All Original John Deere parts have a waiting period and will be couriered  between 2 – 6 days.
22 hp* (16.4 kW) V-Twin engine
42-in (107 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit
18-in two spring suspension seat with armrests
Rubber floor mats, foot lift, and premium control levers come standard
2-year/120-hour bumper-to-bumper warranty.
Features:
Great performance and long life with a smooth and powerful V-twin engine.
A V-twin engine with 44.2-cu in. (724-cc) displacement provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:
V-twin cylinder design for greater torque, lower vibration, and improved sound quality
Engine model M44
Electronic ignition for fast starts
Cast-iron sleeves for longer engine life
Overhead valves for excellent power and fuel economy
Spin-on oil filter with pressure lubrication for keeping the oil cleaner for long engine life and extended time between oil changes; pressure lubrication is also more effective when operating the tractor on an incline
Easy access to the no-tools oil drain valve for oil changes
Rear engine guard for protecting the engine and providing additional strength and integrity.
Replaceable fuel filter and oil filter are easy to access and change to minimize service time and cost.
John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information
Get an even cut with the 42-in. (107-cm) Accel Deep™ (42A) Mower Deck.
The 42-in. (107-cm) Accel Deep Mower Deck is a stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:
4.97-in. (12.6-cm) deep throughout the entire deck shell for optimum mowing, mulching, and bagging performance
Optional MulchControl™ system provides superior mulching performance and versatility
Stamped-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
Mower deck suspended from the vehicle for a smooth and level cut
Adjustable mower wheels, positioned just above ground level, help reduce scalping
0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
Compatible with efficient 6.5-bu (230-L) two-bag cut-and-throw material collection system.
EXCELLENT CUT QUALITY
Deep mower-deck stamping gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:
Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
Helps maintain excellent cut quality at faster mowing speeds
Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.
The flat-top shape of the deck stamping is optimal for keeping itself and the operator clean:
There are few places to catch and hold material on the top and underneath the deck.
Top of deck stays cleaner, reducing time and effort needed for cleaning and service
Underside of deck is self-cleaning to maintain optimum performance without build-up of material to interfere with the flow of air and clippings
Less need to clean and remove build-up of material from underside deck
The depth of the Accel Deep Mower Deck minimizes the amount of material that escapes from the front of the deck
Limited amount of material to drift onto the operator and mower deck
Even flow of material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.
EXCELLENT CUT QUALITY
Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:
The flat-top design reduces places for material to build up and makes material that does collect easy to remove.
A wash port is provided to make cleaning the underside of the mower deck easy.
Hose connector is included with the mower deck.
The 42A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:
Ribs in the deck shell add strength where it is needed.
The 42A has a 16 percent heavier overall weight than the Edge™ Xtra 42-in. (107-cm) Mower Deck that it replaces.
Mower wheels are double captured:
Provides greater strength and durability for longer, trouble-free life.
Single-bolt adjustment makes setting wheels to the correct height for the cutting height quick and easy.
Low-tension belt-drive design reduces the side load on the engines lower bearing and mower deck bearings for longer life.
Rolled outer edge of the deck provides extra strength and protection.
Dual-stage E-coat and powder-paint coatings provide extra protection from rust.
The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
The operator is required to get off the machine in order to engage or disengage mulch mode.
Changing from mulching to side discharge or vice versa takes only a few seconds.
EXCELLENT CUT QUALITY
MulchControl is well-suited to the following mowing situations:
Usually mulch, but side discharge when grass gets too long
Usually side-discharge, but would like to be able to close the chute to control clippings
Always mulch a main lawn, but often side discharge secondary lawns
Bag clippings, but want to go farther before emptying bags
While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
When cutting strong southern grasses, such as Zoysia and Bermuda
When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
Optimum bagging and lawn cleanup is desired
The 42A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:
With the optional MulchControl system installed (along with the special mulching blades), changing from side discharge to mulching or vice versa is done with the simple flip of a lever.
The cut-and-throw rear bagger can be used with MulchControl installed by removing the rear MulchControl baffle (A) before installing the bagger chute. The baffle is held in place with two carriage bolts. To return to mulching, the chute needs to be removed and the baffle replaced.
Specifications:
Engine Power: 22hp ( 16.4kw )
Engine Model: M44 Intek
Forward Speed: 0-7mph ( 0-11.3km/h )
Front Caster Tyres: 11×4-5
Drive Tyres; 18×8.5-8
Seat Back Height: Medium Back with Armrests, 18″ ( 45.7cm )
Width of Cut: Accel Deep mower deck, 42″ ( 107cm )
Mulching System: Optional MulchControl attachment
Engine Specifications
Power: 22hp ( 16.4kw )
Model: M44 Intek
Displacement: 724cc
Cylinders: V-Twin
Lubrication: Full pressure with replaceable filter, 1.9L
Type: Overhead valve
Battery: 12v 300CCA
Choke/Speed Control: Single lever
Cooling Method: Air
Fuel Tank Capacity: 7.9L
Fuel Gauge: Low-fuel light
