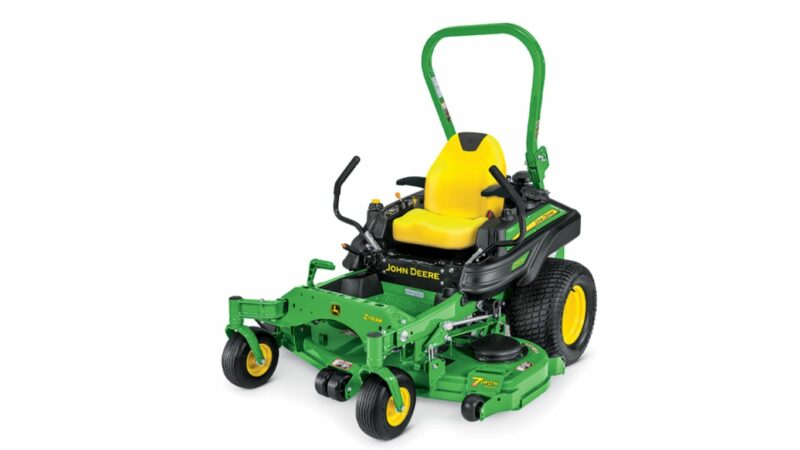

John Deere Z940 Zero Turn Mower 60″ 852cc Engine

John Deere  Commercial Z930M
ZTrak™ Zero-Turn Mower
Turfmaster p/n:
JD-Z930
Offer valid while stocks last
Choose a John Deere lawn mower because your yard is more than a place to mow. That’s why our lawn tractors are built to tackle any job on your turf. With attachments for every season, you can mulch, haul, bag, plow, and more. Because enjoying your lawn should be a year-round activity. (Attachments is optional extra )
KEY SPESIFICATIONS
7-Iron™ PRO deck
Mulch On Demand™ Available
Gasoline Engine
Propane Option Available
Rear Discharge Deck
Engine Manufacturer/Model- FX801V
Engine Power- gross at 3,600 rpm / 25.5 hp / 19 kW
Fuel Tank Capacity- 43.5 liters
Mower Deck Size- 137, 152 cm
Blade Tip Speed- approximately 18,000 fpm
60 in. rear discharge: approximately 15,000 fpm
Transmission- hydrostatic
Speed Range- 0-16.1 km/h
Drive Wheels- 24 x 12-12
Caster Wheels- 13 x 6.5-6
WARRANTY
2 years limited warranty
ENGINE
Manufacturer/Model- FX801V
Power- gross at 3,600 rpm / 25.5 hp / 19 kW
Displacement- 52 cu in. (852 cc)
Total Cylinders- 2
Crankcase Capacity- with filter 2.3 liters
Oil Filter- full flow, replaceable
Lubrication- full pressure
Cooling- air
Air Cleaner- pre-cleaner
heavy-duty canister type with safety element
FUEL SYSTEM
Fuel Type- Petrol 93
Consumption- under normal conditions, load, operation, and dependent on loads and operating conditions 4.2-7.2 liters/hour
Fuel Tank Capacity- 43.5 liters
Comes with fuel tank switch/shut-off valve
ELECTRICAL SYSTEM
Charge System- 20 amp
Battery Voltage- 12 v
Cold Cranking AMP- 300 amp
Hour meter- standard, digital
Operator Presence Starting System- brake-n-go (hand)
DRIVETRAIN
Transmission- hydrostatic
Wheel Motors- tuff torq heavy-duty integrated piston wheel motor
Travel Speed- Speed range 0-16.1 km/h
Forward 0-16.1 km/h
Reverse 0-7.2 km/h
Speed And Direction Control- twin levers
Hydraulic Capacity- 5.6 liters
Filter- internal, replaceable
TIRES
Drive Wheels- 24 x 12-12
Load Rating- 4 PR
BRAKES
Dynamic Braking- twin levers
Park Brake- internal wet disk integrated in the transmission
Park Brake Actuation- hand brake
PTO
Type- electro-magnetic, 225 lb-ft (305 Nm)
Drive- v-belt
MOWER DECKS
Size- 137, 152 cm
Deck Thickness- 7 gauge / 0.18 in. / 4.6 mm
Discharge- side, Mulch On Demand™ system, rear
Height-Of-Cut Range- Increments
0.64 cm – 2.54-14 cm
Cutting Width- 137, 152 cm
BLADES
Length- varies by deck size
Thickness- 0.64 cm
Blade Tip Speed- approximately 18,000 fpm
60 in. rear discharge: approximately 15,000 fpm
Total blades; 3
WHEELS
Caster Wheel Type- flat free
Caster Wheels- 13 x 6.5-6
Front Anti-Scalp Rollers- RH, center, LH
Rear Anti-Scalp Rollers- standard
DIMENSIONS
Length- 213 cm
Width- with chute down, 173, 188 cm
rear discharge, 161.3 cm
Height- with ROPS up, 185 cm
with ROPS down, 119 cm
Weight- 578 to 619 kg
OPERATION
Slope Operating Limit- 20 degrees (10 degrees with material collection system installed)
Has rollover protective structure (ROPS)
FEATURES
Powerful 25.5-hp (19.0-kW) commercial-grade engine delivers class-leading performance and efficiency
The Z930M is powered by an air-cooled, vertical shaft engine.
Engine features include:
Overhead valve design
Full-pressure lubrication with full-flow filter
Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain
Oil filter helps keep oil clean for increased engine life
V-twin big block design
Vertical shaft
Easy-access, dual-element air filter with quick-release latch
20-amp alternator
Fuel pump
Complies with strict Environmental Protection Agency (EPA) and California Air Resources Board (CARB) emission standards without loss of horsepower or torque
Aluminum block engines
Effectively dissipate heat
Lightweight and strong construction
Extend engine life due to elimination of debilitating engine temperatures
Air-cooled engine design
ZTrak™ Z900 Mowers are equipped with a dual-element, canister-style air filter, easily accessible from the rear of the machine without tools.
The filtration system pulls clean air from above the engine, in turn filtering out the dust that can damage an engine over time.
Filters are extremely easy to change when required.
Pre-cleaner provides more protection against contamination in dusty and dirty applications.
The ZTrak™ Z900 Mowers are equipped with one single-fill, top-draw fuel tank:
43.5-L capacity enables operators to mow all day without refueling.
The fuel gauge makes it quick and easy to see how much fuel is in the tank.
Top draw provides added safety.
A large fuel-filler neck is angled to make it easy for an operator to complete the fueling process
Enhanced productivity, safety, and trim ability with a Fastback™ PRO rear-discharge mower deck
For professional landscapers and government municipalities requiring rear discharge placement of grass and debris, John Deere Fastback PRO rear-discharge mower decks deliver a commercial zero-turn mowing solution for both gas and diesel machines. Advantages of a rear-discharge mower include:
Less chance of damage from objects being thrown from the mower deck
Time savings with the ability to mow closely around fixed objects with either side of the deck
A cleaner mowing experience by lessening the amount of debris that can blow onto the operator
A rear-discharge mower deck is ideally suited for:
Schools
Parks
Playgrounds
Traffic areas (city boulevards, roadsides, etc.)
Areas with long, grassy spots that need to be cut, where you are not as concerned about wide dispersal of grass (park areas, roadsides, etc.)*
