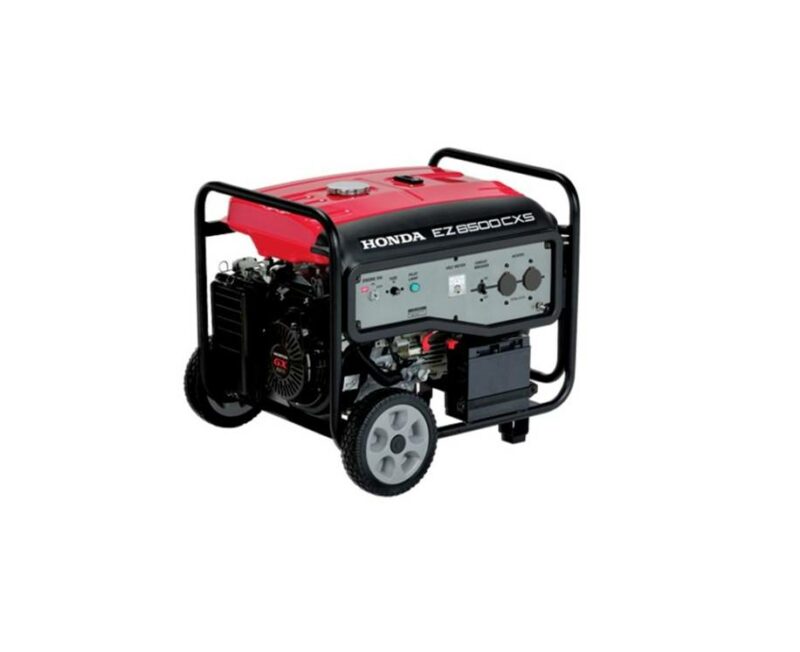

Honda EZ6500CXS durable and powerful generator, max 5.5kVA Open Frame Generator with AVR
Turfmaster p/n:
HEZ6500CXSMX
The Honda EZ6500CXS durable and powerful generator.
Design
The central design of the control panel makes for easy starting, running, and stopping.
Efficiency
With a large tank and built-in fuel gauge, the Honda EZ6500CXS just keeps on running.
Performance
The Legendary Honda GX390 provides reliability and power like no other.
Generator:
AC Frequency (hz):
50
AC Output Voltage (V):
220
Rated AC Output (kVA):
5
Max AC Output (kVA):
5,5
Rated Current:
22.7A
DC Rated Voltage:
12v
DC Rated Current:
8.3A
Continuous Operating Hours (hrs):
5,8
Engine:
Model:
GX390
Type:
Air-cooled, 4 stroke, OHV, single cylinder
Displacement (cc):
389
Ignition System:
Transistorized Magneto
Starting System:
Recoil and/or Electric ( sold without battery )
Fuel Tank Capacity (l):
15,5
D
imensions and Weight:
Dimensions (L x W x H) (mm):
844 x 533 x 571
Dry weight (kg):
87
Features:
Noise Level:
±72-78dB
Eco Throttle:
No
Oil Alert:
Yes
Fuel Gauge:
Yes
Large Capacity Fuel Tank:
Yes
Capacity Air Cleaner:
Yes
Large Capacity Muffler:
Yes
Large Capacity Fuel Cleaner:
No
Accessory AC Plug:
Yes
Automatic Voltage Regulator:
Yes
Voltmeter:
Yes
AC Circuit Breaker:
Yes
DC Circuit Breaker:
No
Parallel Operation Connection Ports:
No
Parallel Operation Connection:
Cable
2/4-Wheel Dolly Kit:
Yes
Electric Starter:
Yes (Require Battery)
Battery Tray Kit:
Yes
Battery:
No
Pilot Lamp:
N/A
Receptacle 1:
N/A
Receptacle 2:
N/A
Engine Oil
Engine oil is a major factor affecting engine performance and service life. Non detergent oils and 2 stroke engine oils will damage the engine and are not recommended. Check the oil level BEFORE EACH USE with the generator on a level surface with the engine stopped.
Use a high quality detergent oil classified “For Service SF, SG, SH, SJ” 4-stroke motor oil. Use no special additives with recommended oils. Do not mix with gasoline.
Air cooled engines run hotter than automotive engines. The use of no-synthetic multi-viscosity oils (5W-30, 10W-30, ect ) in temperatures abofe 40 °F (4°C), will result in higher than normal oil consumption. When using multi-viscosity oil, check oil level more frequently
SAE30 oil, if used below 40° F (4°C ) will result in hard starting and possible engine bore damage due to inadequate lubrication.
