Honda Generator 9kva with AVR EM10000
Please take note that this Honda Product may have a waiting period for delivery.
Please contact us to confirm the waiting period.
Turfmaster p/n:
HEM10000

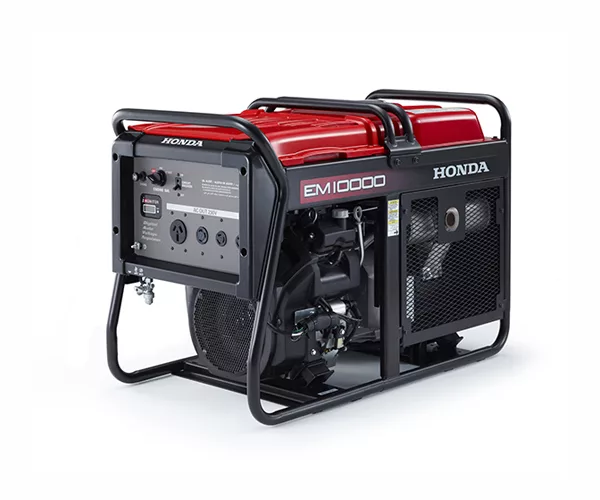

Honda EM10000 is an 8KVA gasoline generator with key start (Electric Starter) for homes and small businesses. The key start makes it very convenient to use and with a noise level of 72dB(A) at a distance of 7m, it is one of the most silent generators you will find with equivalent power output.
Today, demand for portable electric power has grown. For this reason, the generator market is expanding and the need for larger sized generators has increased significantly. To cater to these needs, Honda is excited to announce the arrival of the much anticipated 9kVA EM10000 industrial generator.
The EM10000 has the best fuel consumption in its class. It delivers a generous 9000W/ 240volt AC, making it the perfect worksite companion for jobs large and small; it is also ideal for residential properties in time of power outages.
The EM10000
features Honda’s i-Monitor display, a liquid crystal screen that allows the user to quickly access and view crucial engine readings and information such as an hour meter, output voltmeter, battery voltmeter and error coding. There is also a prominent red oil warning light on the same panel.
Digital Auto Voltage Regulator (D-AVR), digitally calculates the effective voltage in the EM10000 from the output voltage waveform, by area calculating with a microcomputer. The effective voltage can be found with high accuracy even when the output voltage waveform is deformed; meaning that the EM10000 will maintain voltage integrity to deliver more stable power.
The EM10000 has a large Smooth Flow exhaust which assists in reducing the noise level with a unique muffler configuration, meaning that this beauty can be used for applications where sound restrictions apply, or where noise pollution may be an issue.
Features:
Maximum AC output 9000VA
V-Twin engine
Electric start (Battery included)
Framed for stability and protection
Centralised control layout for simple operation
New muffler design reduces noise
Economical running
Provides output voltage with less voltage variation
Centralised exhaust system allows multiple units to easily run in parallel
One-touch operation removable type air cleaner cover
Specifications:
Type:
Open Series
AC Frequency (HZ):
50
AC Output Voltage :
220.
Rated Current:
36.4 Amp.
Rated AC Output (kVA):
8.0
Max. AC Output(kVA):
9.0
DC Output:
12V – 8.3A
Voltage Regulation System:
Digital AVR
Continuous Operating Hours (rate load):
6.5 hrs
Continuous Operating Hours (1/4 load):
–
Operating Noise Level @ 7m (dB(A)):
72
Operating Noise Level @ 7m (Lwa):
99.3
Engine Model:
GX630H 688cc
Engine Type:
Air-cooled, 4 stroke, OHV, V-Twin cylinder
Starting System:
Electric
Fuel Tank Capacity (liters):
31
Voltmeter:
Yes
AC Circuit Protection:
Yes
DC Circuit Protection:
Yes
Pilot Lamp:
No
Fuel Gauge:
Yes
Oil Alert:
Yes
Dimensions (L x W x H) (mm):
973 X 552 X 695
Dry Weight (kg):
162
Wheels:
Not Included
Warranty: 2 year (subject to annual service) conditional
